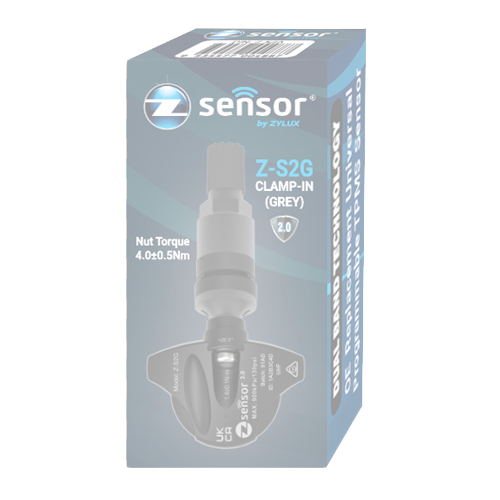

Clamp-In Z Sensor 2.0 - Aluminium Valve (Grey) 315/433Mhz

KEY FEATURES

Covers > 99% Of All Vehicles In Europe, USA, Australia & N.Z.

Manufactured To OE Standards

Ultra Light Weight - 23.2g

Grey Clamp-In Aluminium Valve

Lightning-Fast Less Than 5 Second Programming.

Compatible With Current ATEQ Programming Tools

Z Sensor 2.0 Z-S2B
Z-S2B Z Sensor 2.0

Model: Z-S2G

Clamp-In Z Sensor 2.0 - Aluminium Valve (Grey) Dual Band

APPLICATION GUIDE
  • Frequency: Dual Band 315/433Mhz (Programmable)
  • Operating Temperature: -40 [C] to +125 [C]
  • Storage Temperature: -40 [C] to +125 [C]
  • Max. Operating Pressure: 900 [kPa] 130 [PSI]
  • Screw Torque: 1.4 [Nm] (Max. 1.5 [Nm])
  • Nut Torque: 4.0 [Nm] (Max. 4.5 [Nm])
  • Valve Stem: Aluminium [grey]
  • Sensor Body Weight: 10.5 [g] (without valve/screw)
  • Valve / Screw Weight: 12.7 [g]



    • COMPATIBLE PROGRAMMING TOOLS

    Note: For Europe, 433Mhz available only.

    Warning: For professional installation only. Please carefully read the instructions and cautions before installing the sensor. The manufacturer will not assume any liability for malfunctions caused by the failure to follow instructions. This product contains chemicals including lead, which is known to the State of California to cause cancer and reproductive issues. For more information, go to www.P65Warnings.ca.gov.
    Specifications subject to change without notice.
